Bob Johnson’s Tire-Searing, LS-Powered, ’70 Olds 4-4-2

By Chuck Vranas

Photography & Videography by the Author

G

rowing up during the peak of the muscle car wars, there was plenty of excitement to be found both on the street as well as in the pages of your favorite magazines. The Rally Red ’70 Olds 4-4-2 convertible owned by Bob Johnson of Manchester, New Hampshire, on our pages is a perfect example of a ’70s-era muscle car that’s evolved into a cutting-edge performance car thanks to updated chassis dynamics, big brakes, and LS V-8 power. (Backstory on what the “4-4-2” represents: It derives from the original car’s four-barrel carburetor, four-speed manual transmission, and dual exhausts.)

Harkening back to the wild advertising campaigns of the ’60s and ’70s, the Big Three showcased their constantly evolving muscle cars through sharp-edged promotions that were literally on fire. With each brand’s unique personalities, promoting the latest models and features between manufacturers were laced with special taglines, characters, and styles to lure buyers into the seats of their hot factory hop-ups. While Pontiac ads used a tiger for the GTO, Ford ran ads on how to cook a tiger and Plymouth’s iconic Roadrunner blazed across the pages. It was the mysterious Dr. Oldsmobile, portrayed as a mad scientist in a white lab coat, who became the iconic spokesperson of the 4-4-2, leading young buyers into his laboratory to challenge the other marques.

Having experienced the thrills of watching the muscle car evolution at its peak, Bob had always been fascinated with offerings from Oldsmobile. This passion eventually led him on a search for a ’70 Olds 4-4-2 drop-top packing all the right factory bits. Eventually he came face-to-face with a ’70 model that checked all the right boxes, so a deal was made swapping cash for keys, bringing his dream ride home. After a couple of years driving the restored factory classic, he decided it was time to turn up the heat in a way that Dr. Olds might have done given the technological advancements afforded to today’s builders. By fusing improved performance to the vintage shell, he envisioned the perfect combination to make the driving experience even more exciting. Having seen several recent builds from the stables of Bayberry Vintage Autos (BVA) in nearby Hampton, New Hampshire, he set up a meeting with shop general manager Jim Dunaway. The pair shared many of the same ideas for blending modern LS power with an upgraded platform, suspension, and brakes and before long the car was dropped off to begin its transformation.

With the factory chassis having served the car well over the past 50 years, it was carefully separated from the body and repurposed for an upcoming restoration project. A call was placed to Roadster Shop (RS) for one of their cutting-edge SPEC series chassis featuring their exclusive “Laser Rails” precision CNC laser cut and contoured framerails linked together with custom crossmembers and bracing. To make installation flawless, RS also utilizes all factory mounting points for body, bumper, and core support mounts as well as offering crossmembers and chassis bracing, allowing for up to a 3-inch exhaust. Out back, a Ford 9-inch housing is filled with 31-spline axles matched to a Strange Engineering Pro-Series nodular iron third member with an Eaton Detroit Truetrac differential spinning 3.70 gears. It’s suspended in place by an RS parallel four-bar with matching RS SV fixed valve coilover shocks by Fox and a Panhard bar. To up the ante with supercar–like handling, the RS IFS is packed with features, including boxed lower control arms with tubular uppers matched to Wilwood ProSpindles, RS SV fixed valve coilover shocks by Fox, power rack-and-pinion steering, and heavy-duty sway bar. When it’s time to cut speed, a JEGS dual power master moves fluid through RS custom-fit stainless lines to Baer 13-inch drilled-and-vented two-piece rotors with matching four-piston calipers mounted at each corner. For plenty of vintage style, a set of American Racing Draft-Series 18×9 wheels wear Nitto NT555 G2 rubber sized 245/45ZR18 front, and Nitto NT555 RII Drag Radials sized P305/40R18 rear.

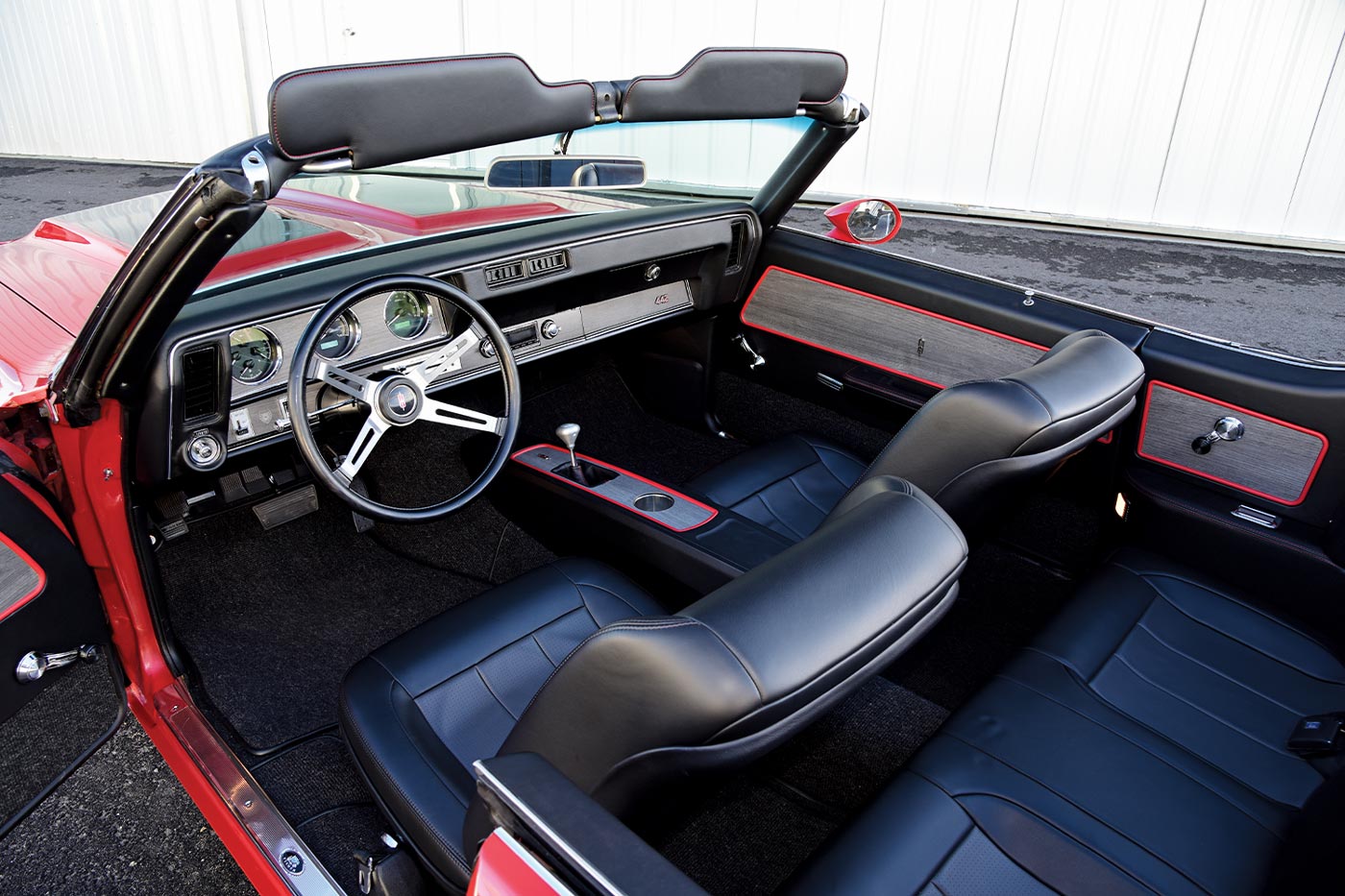

focused view, with the top down, on the ’70 Olds 4-4-2 convertible front seating and dash

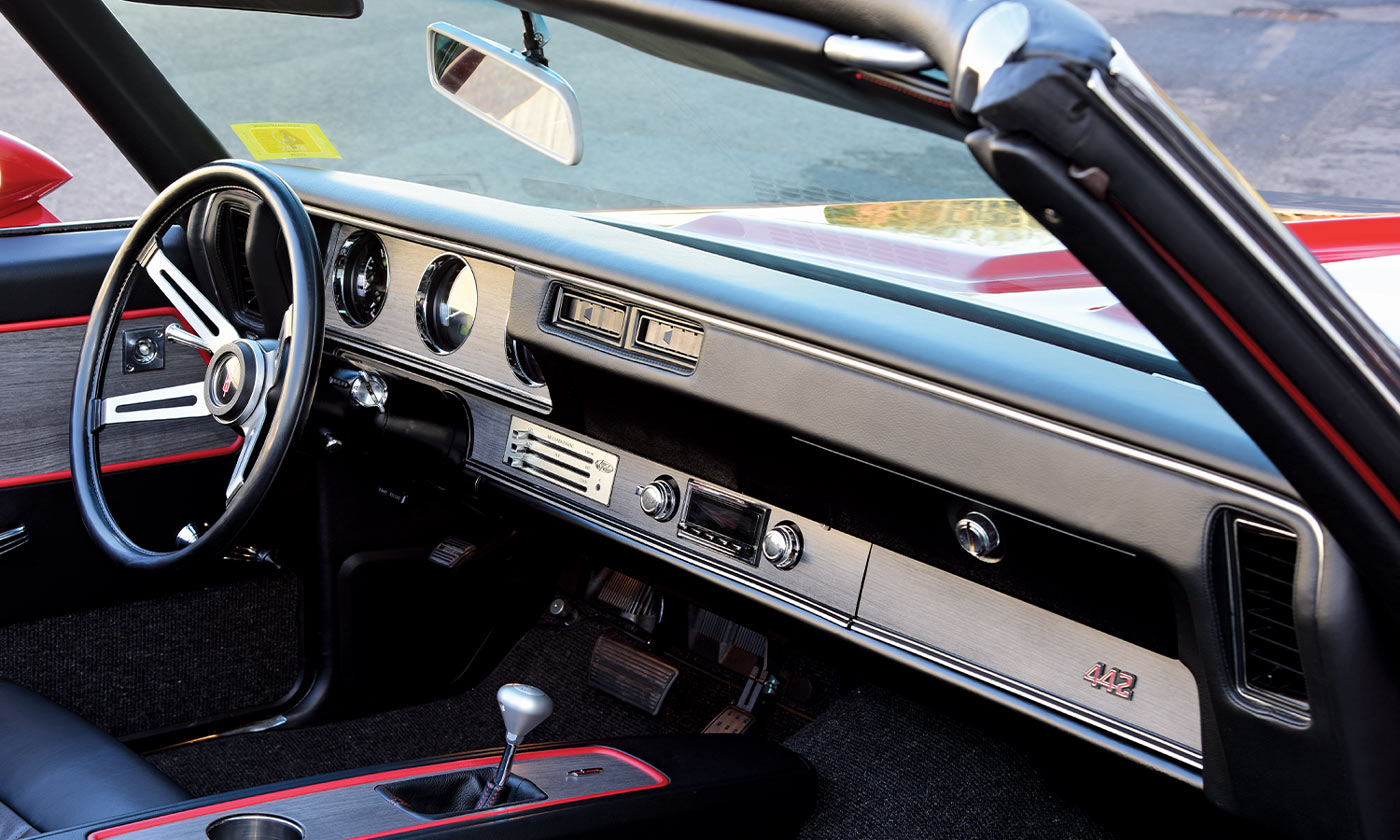

focused view, with the top down, of the ’70 Olds 4-4-2 convertible passenger side and driver dashboard and steering

focused view, with the top down, of the ’70 Olds 4-4-2 convertibles front and rear seating

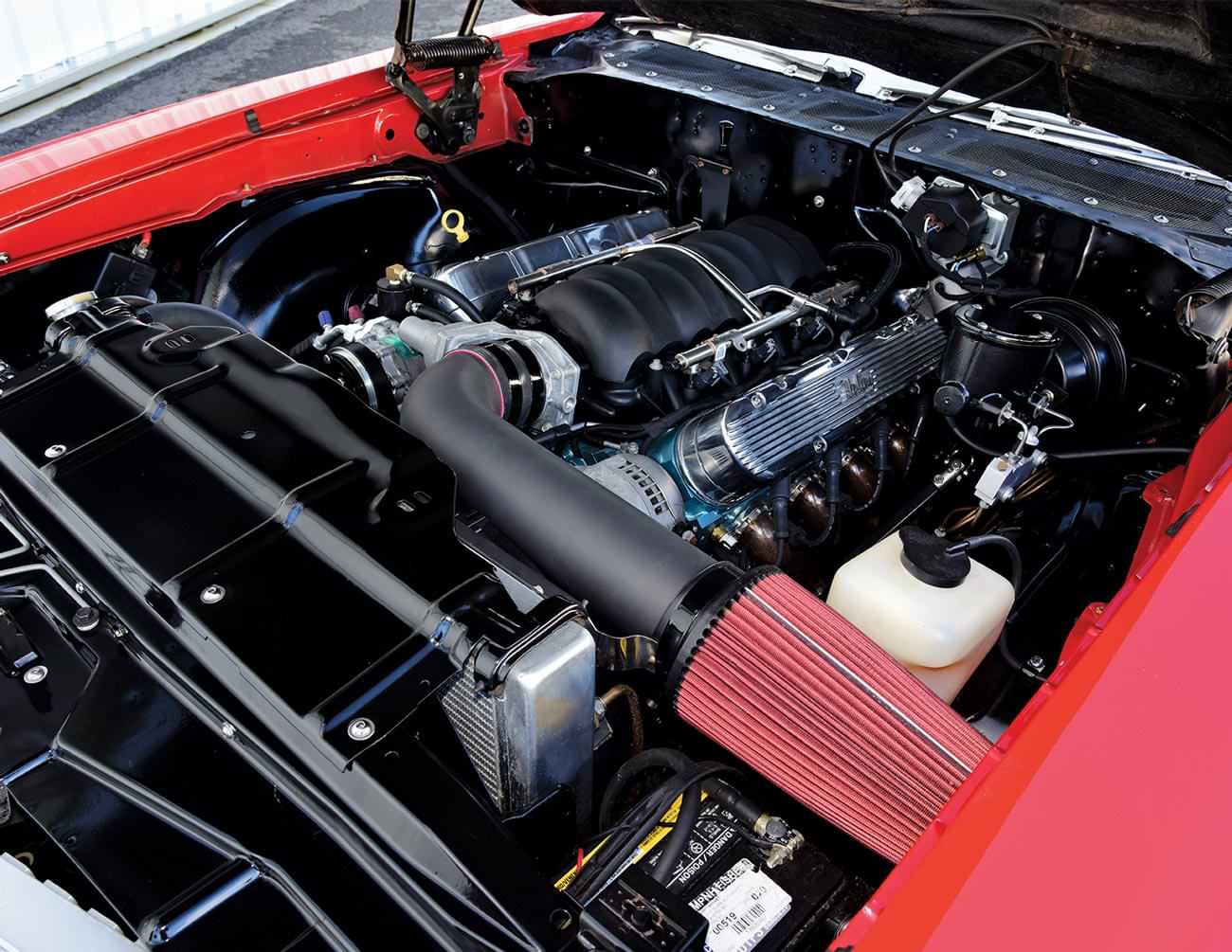

Nothing speaks louder than the tire-searing level of horsepower generated by a modern LS V-8 strapped to the framerails of a classic muscle car. To update the Olds with a wicked combination, Bob contacted Chevrolet Performance for one of their unstoppable LS376/525 Connect & Cruise packages. Starting with a speed shop full of go-fast goods, the cast-aluminum block with six-bolt, cross-bolted main caps is filled with a nodular iron crank wearing powdered metal rods crowned by hypereutectic aluminum pistons. An aggressive ASA hydraulic roller cam adds a vicious bump while a pair of aluminum L92-style port heads as-cast with 68cc chambers generates seamless power. Up top, a factory intake, throttle body, and injectors deliver the goods with plenty of punch while other cool bits include a Holley mid-mount accessory drive accented by their finned aluminum two-piece signature valve covers and a custom cold-air intake by BVA. A factory ignition lights the fire with exhaust roaring through a set of stainless Ultimate Headers to a custom 3-inch stainless exhaust with Borla mufflers by BVA. To move the power, a Chevrolet Performance 4L70-E automatic (from the Connect & Cruise combination), including all related factory electronics, was matched to a custom driveshaft. It’s all good for a boulevard-stomping 525 hp when the accelerator demands it.

Nothing speaks louder than the tire-searing level of horsepower generated by a modern LS V-8 strapped to the framerails of a classic muscle car. To update the Olds with a wicked combination, Bob contacted Chevrolet Performance for one of their unstoppable LS376/525 Connect & Cruise packages. Starting with a speed shop full of go-fast goods, the cast-aluminum block with six-bolt, cross-bolted main caps is filled with a nodular iron crank wearing powdered metal rods crowned by hypereutectic aluminum pistons. An aggressive ASA hydraulic roller cam adds a vicious bump while a pair of aluminum L92-style port heads as-cast with 68cc chambers generates seamless power. Up top, a factory intake, throttle body, and injectors deliver the goods with plenty of punch while other cool bits include a Holley mid-mount accessory drive accented by their finned aluminum two-piece signature valve covers and a custom cold-air intake by BVA. A factory ignition lights the fire with exhaust roaring through a set of stainless Ultimate Headers to a custom 3-inch stainless exhaust with Borla mufflers by BVA. To move the power, a Chevrolet Performance 4L70-E automatic (from the Connect & Cruise combination), including all related factory electronics, was matched to a custom driveshaft. It’s all good for a boulevard-stomping 525 hp when the accelerator demands it.

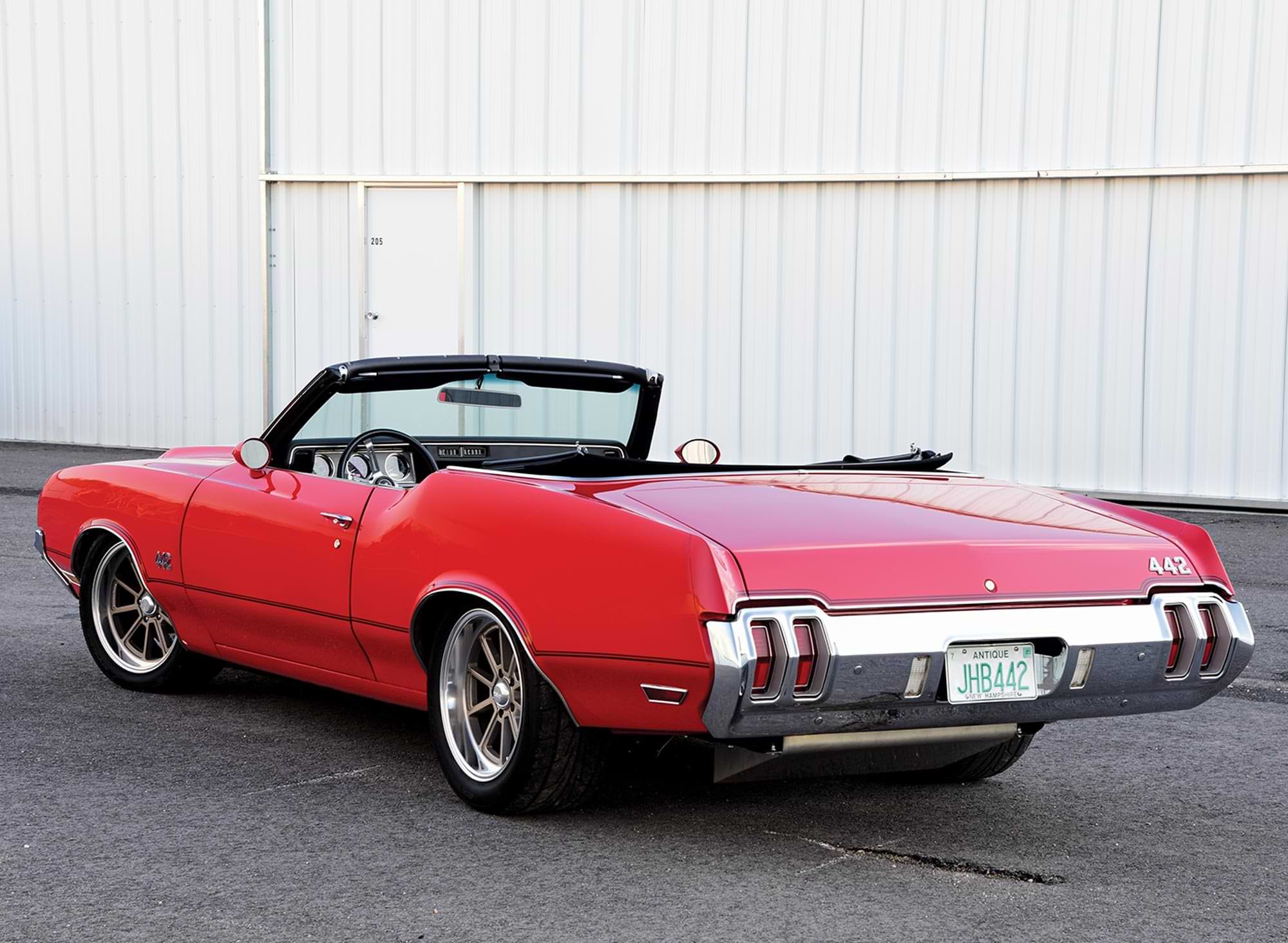

3/4ths rear drivers side rear view of the ’70 Olds 4-4-2

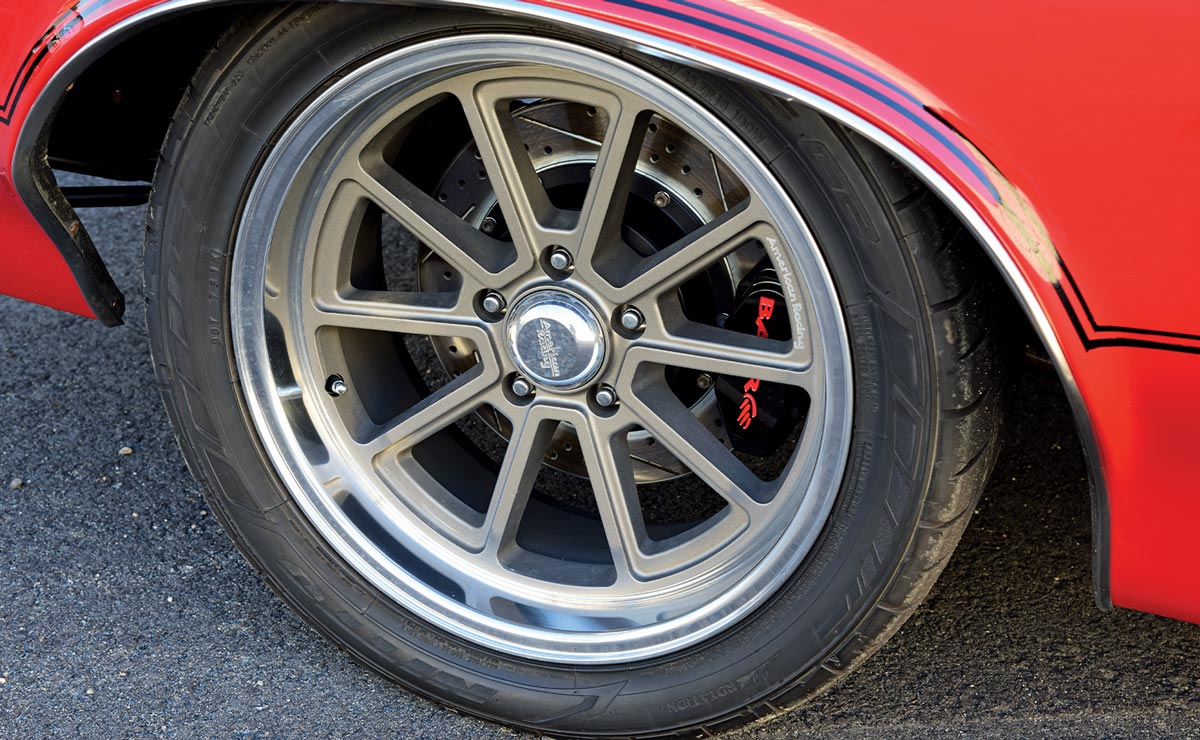

close view of a tire on the ’70 Olds 4-4-2

When it came to addressing the body, thankfully its prior restoration brought the 4-4-2 a clean bill of health. With perfect panels and great gaps, the car has provided years of enjoyment since completed. To bring the exterior plenty of newfound luster, the BVA team got busy by first replacing the grille, trim, lighting, and bumpers with fresh parts from Original Parts Group (OPGI). They followed with a complete paint restoration, which included a full cut and buff to make the Glasurit Rally Red vibe reach full glow. Wanting to give the business office a fresh new look, Bob contacted the talented team at JK Automotive Designs in Stoneham, Massachusetts, to give it new life. Getting started, the factory dash was custom-wrapped and treated to subtle wood inlays while also being fitted with new VHX dials from Dakota Digital to monitor the vitals. A factory replacement 4-4-2 steering wheel from OPGI carves a course through an ididit tilt column with cool breezes coming from a Vintage Air SureFit system and an American Autowire system installed by BVA making it all go live. When it came to comfort, JK crafted full custom seating covered in a modern combination of black and gray leather with just enough red accent, which also carries over to the custom side panels, one-off console, and complementing square-weave carpet. Completing the look, JK nailed it with a perfectly executed black canvas convertible top.

This is one 4-4-2 that we’re sure Dr. Olds would approve of with its classic balance of cutting-edge performance and style as it lays down the miles well into the future.
