The Right Look
Dave Jacobsen Combined the Right Amount of Looks & Power
By Brian BrennanPhotography by John Jackson
T

here are two for sure iconic Chevy body styles: the “bat wing” cars of 1959 and 1960 and the “bubbletop” cars introduced in 1961. In fact, at first glance, one might think a ’60 Chevy might be the revered bubbletop but, alas, it isn’t. The ’59 and ’60 body will continue to be one of the most sought-after body styles in our world of hot rodding. Dave Jacobsen of Naples, Florida, is one such hot rodder who truly is keen on the ’60 Chevy Impala and he shows us just what can be done (not overdone) to a ’60 Chevy Impala to come away with an amazing-looking hot rod.

In an interesting twist of “how did you come by your project?”, Dave found the ’60 Chevy Impala he thought would make a good starting point after stopping by a Mecum Auction. From here he brought home a pristine ’60 Chevy Impala and turned it over to Thom Speed at SaltWorks Fabrication in Sarasota, Florida.

'60 Impala in Black and Red with powder blue sky behind
The iconic looks of the ’60 Chevy were retained during the redo, while a custom steel hood was made at SaltWorks accommodating the all-aluminum Chevy LT5. A little on the ’19 LT5. One of the high points of the LT5 is that Lotus Engineering (GM owned at the time) designed it.

The 6.2L LT5 appeared only in the ’19 Corvette ZR1 but was offered as a Chevrolet Performance crate engine in 2018. (Today Chevrolet Performance offers an LT1, LT4, and an L8T, none of which have the output of the LT5.) The LT5 is the most potent V-8 offered in a Chevy production vehicle (at the time), producing a whopping 755 hp and 715 lb-ft of torque. Built with a forged steel crankshaft, 14-psi maximum boost to the R2650 supercharger makes for a potent powerplant. A set of 1-3/4-inch primary tubes from Ultimate Headers are used along with a full stainless steel exhaust system that runs through a pair of stainless Borla mufflers. Forward on the V-8 is a serpentine belt system that is a compilation of parts that SaltWorks engineered. From here the LT5 is matched to a GM eight-speed overdrive transmission to really improve performance and highway cruise capabilities.

all red modern interior
Radio screen
close up of red steering wheel and gauges

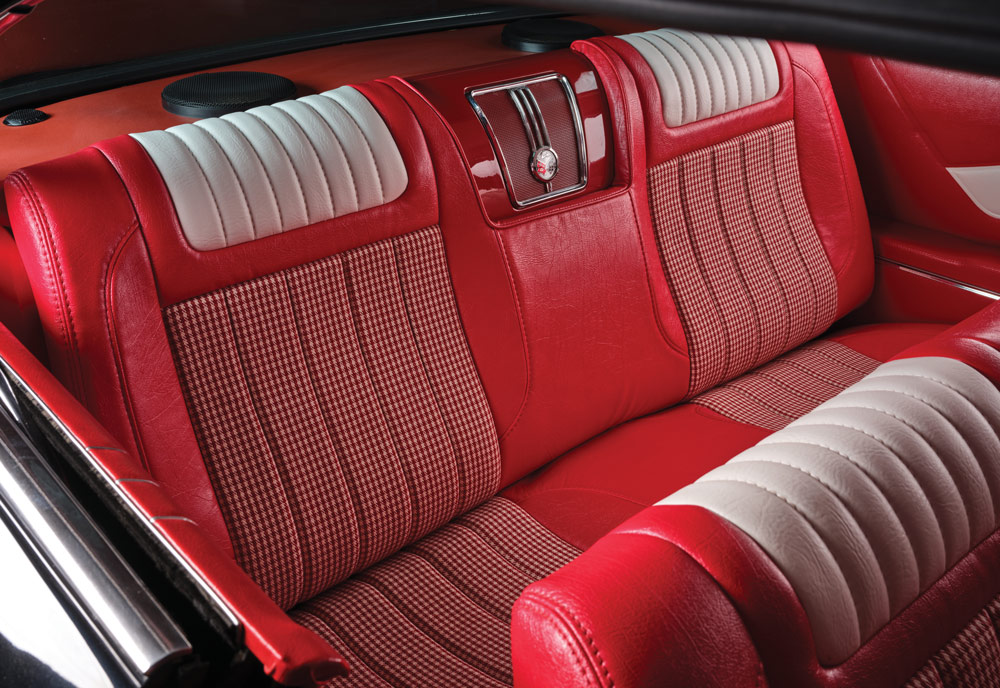

red back seats

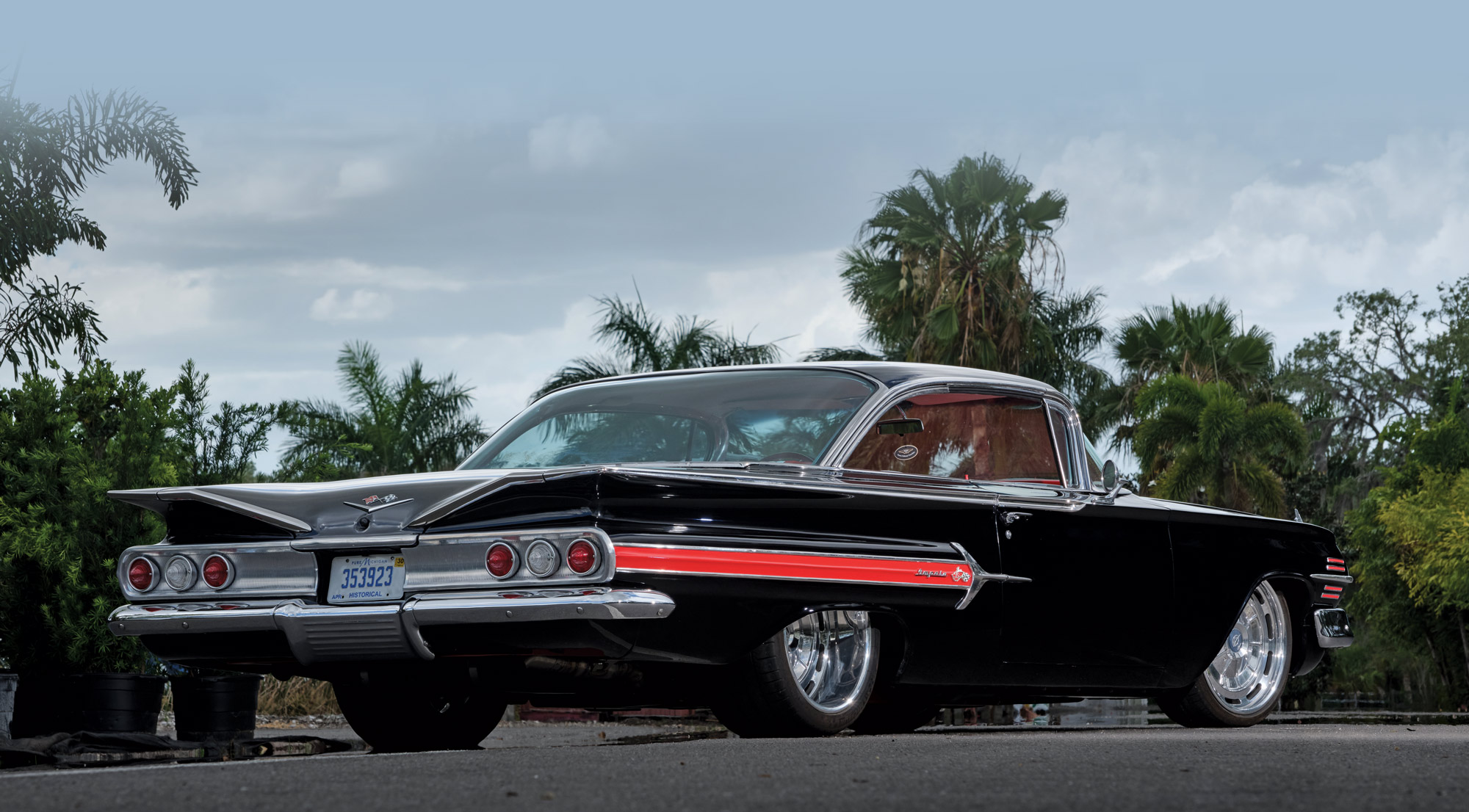

rear view of '60 Impala in Black and Red

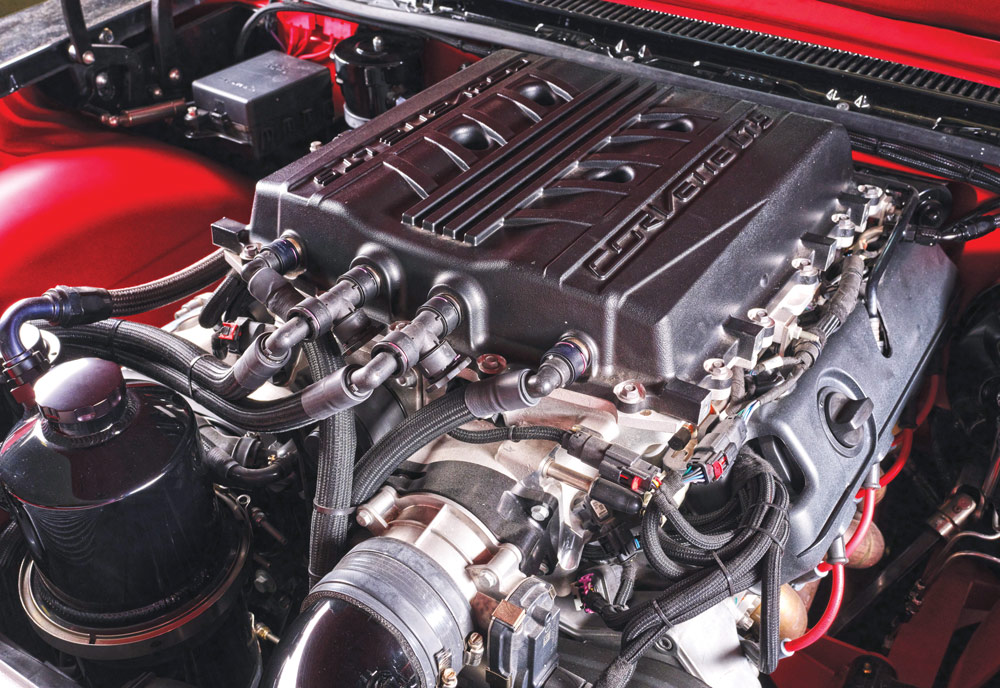

corvette engine with red engine bay inside impala
The powertrain is nestled between the ’rails of a Roadster Shop (RS) chassis that’s painted in a Velvet Red by SaltWorks. From here the RS chassis features their IFS and works back to a Ford 9-inch rearend outfitted with 31-spline axles, a limited-slip differential that’s spinning 3.73 gears. The RS chassis also includes the use of coilover shocks and Baer brakes. The braking system is based on Baer 14-inch rotors in front and back with six-piston calipers forward and four-piston calipers in the rear along with a Master Power Brakes Billet X master cylinder. Getting the rubber on the road falls to a set of Raceline billet 20×9 and 20×12 wheels all wrapped with Michelin rubber measuring 235/50R20 in front and 335/50R20s in back.

The body is essentially stock except for the SaltWorks custom hood. During the Impala’s stay at SaltWorks all the body- and paintwork was handled sourcing PPG black. Note the distinctive red accent paint between the stainless spear trim mounted on the rear quarter-panel. We did say the bodywork is basically stock, but it should be noted that SaltWorks conjured up a set of 4-inch-wider rear tubs to handle the massive rubber.

close up of custom cooling system built into headlight
Inside, the factory dashboard, painted in a brilliant lipstick red, is now equipped with Dakota Digital RTX instruments along with Coach Controls Coach-1 wiring kit handling the juice from the Interstate trunk-mounted battery with remote shutoff. This wiring kit features modern amenities such as automatic headlights, one-touch power windows, lane-changing signaling, delayed headlight turn-off, and dimming dome light. The wiring showcases more of the skill sets offered at SaltWorks. The steering column is an ididit tilt with a Colorado Custom drilled three-spoke billet and leather-wrapped wheel. The custom front and rear (with distinctive center-mounted speaker grille) seating gives the appearance of bench seats but with more of a bucket set function and comfort. They, and the door and kick panels, are covered in a combination of vinyl with cloth inserts by Hot Rod Interiors by Chuck while the red carpeting comes by way of Douglas Aircraft material. There is a custom center console that holds a pair of Vintage Air A/C registers (complementing the Vintage Air A/C system). Also visible are the electric window controls, a USB port, and an Alpine center-mounted digital screen that handles the radio, navigation, and backup camera all through Apple CarPlay. The backup camera is positioned in the factory trunk keyhole while there is a lever behind the rear bumper that opens the trunk.

It was Dave’s goal all along to come up with a hot rod that is a pleasure to drive and enjoy. From what we can see we would have to say he has met his goals … and then some.

angled view of '60 Impala in Black and Red
