There is No Denying the ’26 Ford Model T Sedan is a “Tall” Project
here are many reasons why any of us build the hot rod project we do. It can be that it reminds us of something very cool from our youth, maybe we had something similar, or just maybe it brings back an old memory lifted from the magazine pages of a vintage car magazine. There are as many reasons as there are hot rods. Such is the case for Lyle Milliman of Arizona and his latest project, this ’26 Ford Model T sedan.
Lyle will not hide the fact he was looking for a Model A sedan but then one day came across this ’26 Ford sedan. He had seen plenty of Model As but hadn’t seen many of the Model T varieties. This one caught his attention and he felt it was unique and that would make it even more fun to hot-rod around. While what you see in front of you is just recently finished, the fact is Lyle had driven the car in its original black paint and upholstery for years.
The ’26 Ford Model T sedan is all steel, just as it came from Henry back in the day. From here Lyle fit a Model A front visor, a ’29 Ford front bumper (although lowered and tucked), ’32 Ford door handles, and steel splash aprons punched with louvers by Chip. More custom treatments include the ’35-40 Ford-style mirror stems with Model A mirrors attached and a homemade custom-dropped headlight bar that holds up the stock Model T lighting—note the front and rear lighting are all LED. The four-piece hood is a Rootlieb with side louvers. There was plenty of bodywork to be done but the necessary patch panels were handled by Lyle. The final bodywork was conducted at Ultimate Collison, and it was they, too, who applied the burgundy basecoat followed by the clearcoat.
The ’rails are based on a bare perimeter frame by Californian Custom Roadster (CCR) utilizing a 101-inch wheelbase. In the rear, the frame features a 2-inch kick around the 2×3-inch tubing. From here Lyle welded up the front and rear four-bar kits that were attached to the CCR framerails.

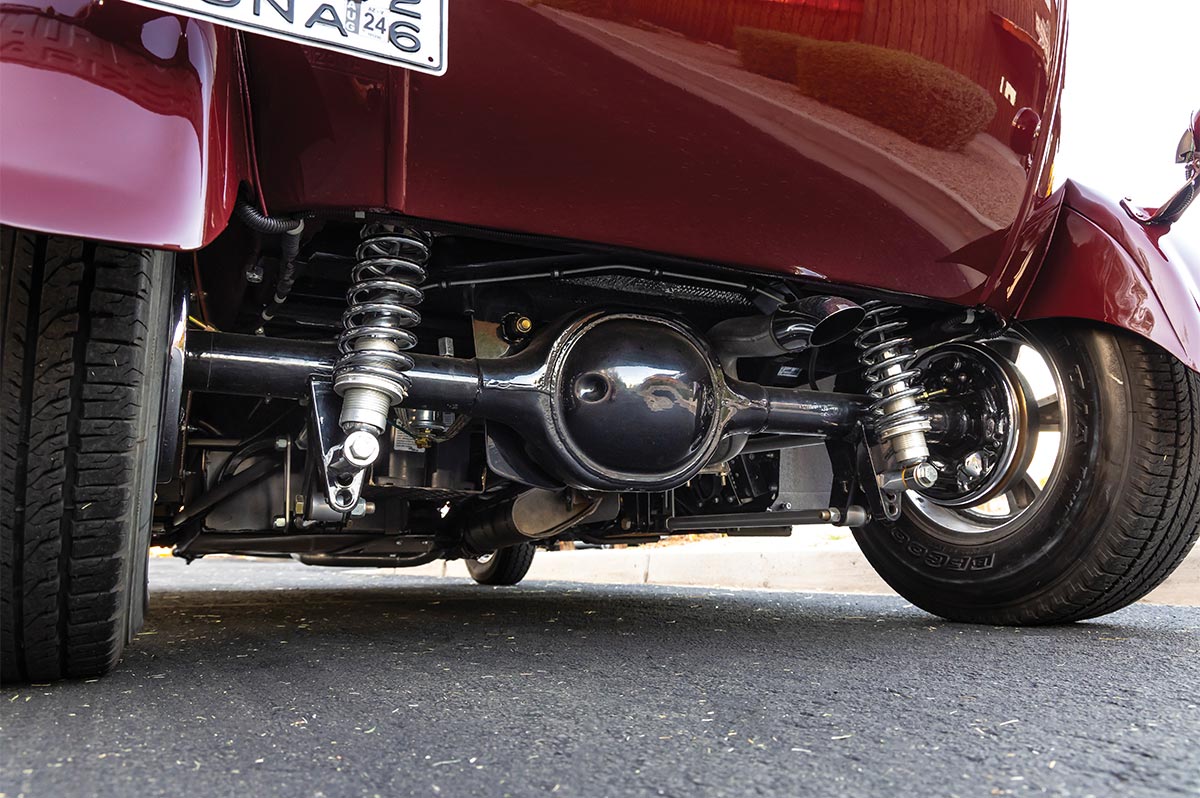

The suspension is comprised of a Pete and Jakes four-bar frontend with a SO-CAL Speed Shop–supplied 4-inch drop I-beam axle, chrome tube shocks with early Ford spindles, and SO-CAL steering arms. The front transverse leaf spring features reversed eyes and has “buttons” between the leaves to ease the ride. The steering box is based on a ’69 Mustang quick ratio that is twisted into action through a ’69 GM truck tilt column. The rearend is based on a ’71 Maverick 8-inch along with a 2.78 ring-and-pinion and stock axles, an owner-built Panhard bar and AFCO coilover shocks from Speedway Motors are used in the back.
In case you are wondering if this is a driver, think about this. Lyle and fellow hot rod buddy and upholsterer supreme Glenn Kramer drove the Tall T to last year’s Grand National Roadster Show … and back. There’s a 900-mile trip to prove it is a driver.
